Distribution optical cable.
Crushing force from 200 N/cm
Tensile force up to 1.0 kN
Operating temperature from -10°С to +50°С Installation: up to -10°С
Fire-safe
Bending presistance

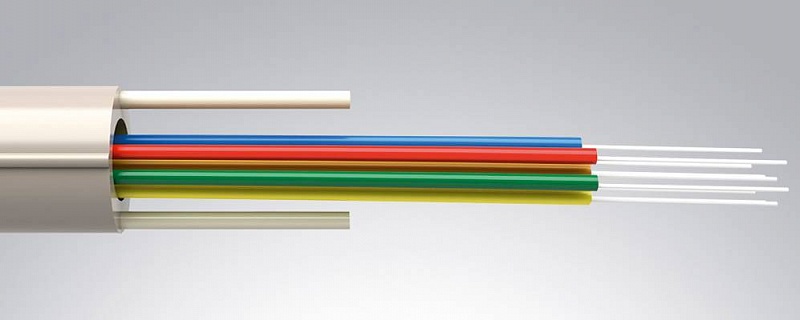

Construction
1.Optical fiber in tight-buffer.
2.FRP rods.
3.Outer PE or PVC fire-retardant sheath
Specifications
|
Number of fibers in a cable |
Nominal calculated cable diameter,mm |
Calculated cable weight,kg/km |
Tensile force,KN |
Min.radius of cable bending,mm |
|
OKV-ngА)-2....48G.657.A1xБ0,9-(1,0) |
||||
|---|---|---|---|---|
|
8 |
8,5 |
63 |
1,0 |
85 |
|
OKV-ng(А)-2....48G.657.A1xБ0,9-(1,0) |
||||
|
12 |
8,5 |
64,8 |
1,0 |
85 |
|
ОКВ-нг(А)-2....48G.657.A1xБ0,9-(1,0) |
||||
|
24 |
10,5 |
91,1 |
1,0 |
105 |
Применение
The cable is designed for indoor applications and laid in vertical risers of building and structures.
Crushing force from 200 N/cm
Tensile force up to 1.0 kN
Operating temperature from -10°С to +50°С Installation: up to -10°С
Fire-safe
Bending presistance
