Optical cable armored with steel tape, central tube design.
Crushing force from 300 N/cm
Tensile force up to 4 kN
Operating temperature from -40°С to +70°С Installation: up to -30°С
Fire-safe
Rodent protection

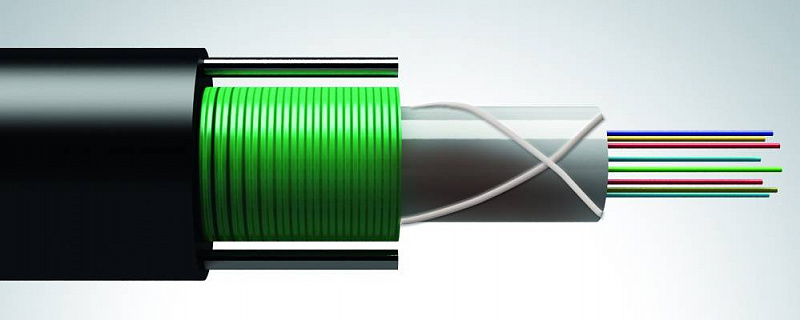

Construction
1.Central strength member - FRP rod, steel strand or steel wire in PE sheath (or without it).
2.Optical fiber.
3.Tube.
4.Water-blocking tape.
5.Steel corrugated tape.
6.Outer PE sheath.
Specifications
|
Number of optical fibers in a cable |
Nominal calculated cable diameter, mm |
Calciulated cable weight, kg / km |
Tensile force, kN |
Min.radius of cable bending, mm |
|
OKKTS(n)-00-1х4...1х48...-(2,7) |
||||
|---|---|---|---|---|
|
Up to 24 |
8,1 |
Up to 80 |
2,7 |
162 |
|
Up to 48 |
10,7 |
Up to 117 |
214 |
|
Custom design is available.
Применение
The cable is designed for installation in cable channels, pipes, blocks, collectors, tunnels, along bridges and in shafts.
Crushing force from 300 N/cm
Tensile force up to 4 kN
Operating temperature from -40°С to +70°С Installation: up to -30°С
Fire-safe
Rodent protection
