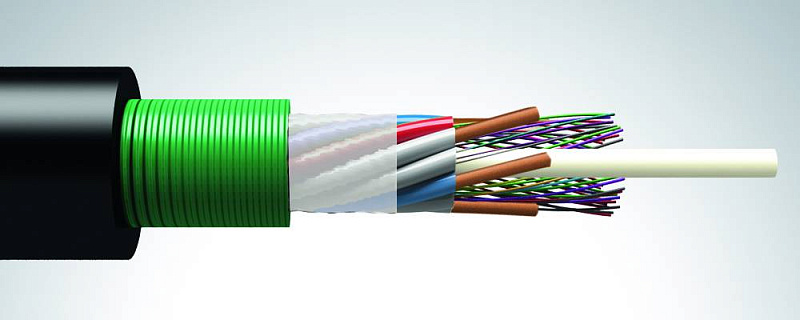

Composite optical cable with copper conductors armored with steel tape, modular design.
Crushing force from 300 N/cm
Tensile force up to 4 kN
Operating temperature from -40°С to +70°С Installation: up to -30°С
Fire-safe
Rodent protection
1.Central strength member - FRP rod in PE sheath.
2.Insulated copper core.
3.Optical fiber.
4.Tube.
5.Water-blocking material.
6.Intermediate PE sheath.
7.Steel corrugated tape
8.Outer PE sheath
|
Number of optical fibers in a cable |
Number of optical fibers in a tube |
Nominal calculated cable diameter, mm |
Calculated cable weight, kg / km |
Tensile force, kN |
Min.radius of cable bending, mm |
|
KSPP OKKM(n)-4Мх0,9/01-1х4…4х24…-(2,7) |
|||||
|---|---|---|---|---|---|
|
Up to 48 |
Up to 12 |
14,4 |
Up to 220 |
2,7 |
288 |
|
Up to 96 |
Up to 24 |
18,1 |
Up to 306 |
362 |
|
|
KSPP OKKM(n)-4Мх1,2/01-1х4…4х24…-(2,7) |
|||||
|
Up to 48 |
Up to 12 |
15,9 |
Up to 270 |
2,7 |
318 |
|
Up to 96 |
Up to 24 |
18,1 |
Up to335 |
362 |
|
Custom design is available.
