Self-supporting dielectric optical cable, design with a central tube.
Crushing force from 300 N/cm
Tensile force up to 15 kN
Operating temperature from -60°С to +70°С Installation: up to -30°С
For any climatic zones
FIre-safe
100% dielectric

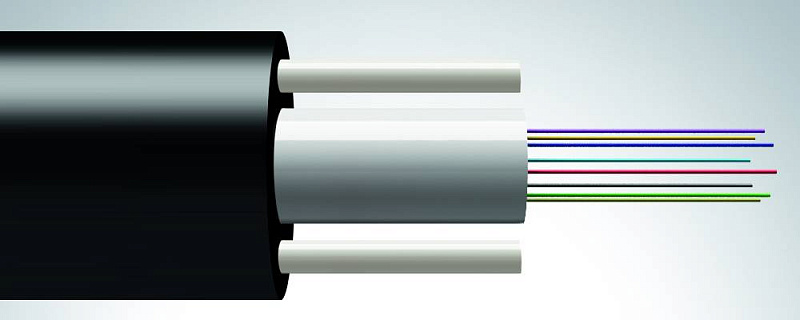

1.Optical fiber.
2.Gel filler.
3.Central tube.
4.Strength member – two FRP rods.
5.Outer PE sheath.
|
Number of optical fibers in a cable |
Nominal calculated cable diameter, mm |
Calculated cable weight, kg / km |
Tensile force, kN |
Min. radius of cable bending,mm |
|
OKSTS-01-1х4…1х48…-(1,5) |
||||
|---|---|---|---|---|
|
Up to 24 |
7,0 |
Up to 43 |
1,2 |
140 |
|
Up to 48 |
8,8 |
Up to 67 |
176 |
|
|
OKSTS-01-1х4…1х48…-(8,0) |
||||
|
Up to 24 |
8,2 |
Up to 65 |
8,0 |
164 |
|
Up to 48 |
10,1 |
Up to 82 |
202 |
|
|
OKSTS-01-1х4…1х48…-(15,0) |
||||
|
Up to 24 |
9,4 |
Up to 80 |
15,0 |
188 |
|
Up to 48 |
11,2 |
Up to 105 |
224 |
|
